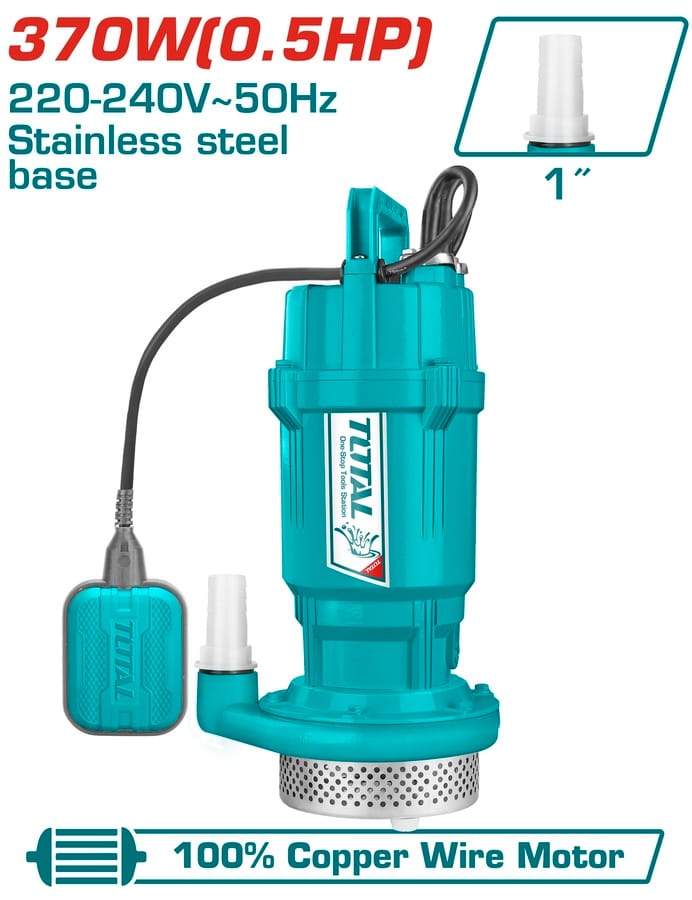

The TOTAL TWP63706 Submersible Water Pump is a compact 370W / 0.5HP clean-water pump designed for tank emptying, drainage, irrigation, household water transfer and light commercial use.

It delivers up to 100 litres per minute with a maximum head of 17 metres. A built-in float switch enables automatic operation based on water level, while stainless-steel components and thermal protection help improve durability and motor safety.

💧 Key Features

• ⚡ 370W / 0.5HP motor
• 💧 Maximum flow: 100L/min
• 🌊 Equivalent to approximately 6,000L/hour
• 📏 Maximum head: 17 metres
• 🔩 1-inch outlet
• 🔌 220–240V, 50Hz
• ⚙️ Copper-wire motor
• 🎚️ Built-in float switch
• 🛡️ Thermal motor protection
• 🧱 Stainless-steel base
• 🔩 Stainless-steel shaft and screws
• 📏 9-metre power cable
• 🚰 Designed for clean-water applications
• 🏠 Suitable for domestic and light commercial use

🎚️ Automatic Float Switch

The integrated float switch allows the pump to operate automatically according to the water level.

It is useful for:

• 🚰 Water tanks
• 🕳️ Sumps
• 🌧️ Drainage pits
• 🏠 Basement drainage
• 💦 Water collection areas

When the water rises, the float can start the pump; as the water level drops, it can switch the pump off.

💦 High Flow for a Compact Pump

Despite its compact 0.5HP motor, the TWP63706 can deliver up to 100L/min, making it suitable for quickly transferring clean water from tanks, pits and storage areas.

Typical applications include:

• 🚰 Emptying water tanks
• 🌱 Garden irrigation
• 💦 General drainage
• 🌾 Light farm use
• 🏠 Household water transfer
• 🧼 Cleaning applications

✅ Benefits

• Compact and easy to handle
• Low 370W power consumption
• High 100L/min maximum flow
• Automatic float-switch operation
• 9m cable for greater reach
• Stainless-steel components
• Thermal motor protection
• Copper-wire motor
• Suitable for homes, farms and light commercial applications

⚠️ Installation & Operating Notes

• 💧 Keep the pump submerged during operation
• 🚫 Do not allow it to run dry
• 🌍 Ensure proper electrical earthing
• 🔌 Use suitable circuit protection
• 🎚️ Allow the float switch enough room to move freely
• 🧹 Use with clean water rather than sewage or heavy debris
• 🔩 Use correctly sized 1-inch delivery pipe or hose
• ⚡ Disconnect power before servicing
