Product overview
Reliable performance without the guesswork.
Review the product details, specifications and support information below before ordering.
- 🏠 Large home solar systems
- 🏢 Offices
- 🏪 Shops and commercial premises
- 🌍 Off-grid properties
- ☀️ Hybrid solar installations
- 🧊 Refrigeration backup
- 💧 Pumping systems
- 📡 Communication installations
- 📹 CCTV and security systems
- ⚡ Areas with frequent or prolonged power outages
With 8000W continuous output, the inverter can support a substantial range of residential and business appliances when correctly sized, including:
- 💡 Household and commercial lighting
- 📺 Televisions
- 📡 Wi-Fi and networking systems
- 💻 Computers and office equipment
- 🧊 Refrigerators and freezers
- 🌀 Fans
- 📹 CCTV systems
- 🧺 Washing machines
- 🍳 Selected kitchen appliances
- 💧 Water pumps
- 🏪 Shop and commercial equipment
- ⚙️ Selected motor-driven loads
Always account for the starting surge of compressors, pumps and motors when calculating the total load.

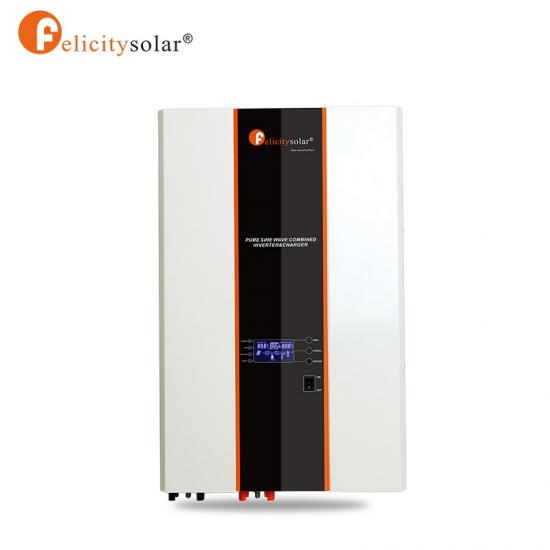

The Felicity Solar IVPM10048 Hybrid Inverter is a heavy-duty 10kVA / 8000W low-frequency solar inverter designed for large homes, offices, shops, commercial premises and off-grid installations.
It operates on a 48V battery system and combines inverter, grid charging and MPPT solar charging in one unit. With support for up to 6600W of solar PV, a 60–195V DC PV working range and high charging capacity, it is suitable for installations that require substantial backup power and reliable daily solar operation.
⚡ Key Features
- ⚡ 10kVA inverter capacity
- 🔌 8000W rated continuous output
- 🔋 48V DC battery system
- ☀️ Built-in 120A MPPT solar charge controller
- 🔆 Supports up to 6600W PV input
- 🌞 60–195V DC solar operating range
- 🔌 Adjustable AC charging from 0–80A
- ⚡ Maximum combined mains + solar charging current up to 200A
- 🌊 Designed for sine-wave power operation
- 📟 Digital monitoring screen
- 🔄 Selectable grid or battery priority
- 🔌 Supports utility or generator input
- 🛡️ Overcharge, overload and short-circuit protection
- ⏱️ Fast transfer between AC and battery operation
- 🏠 Suitable for large residential and commercial backup systems
- ☀️ Ideal for off-grid and hybrid solar applications
☀️ MPPT Solar Charging
The IVPM10048 is equipped with a high-capacity MPPT solar charging system capable of handling up to 6600W of solar panels.
Its PV section supports:
- ☀️ Up to 6600W solar input
- 🔋 120A MPPT solar charging
- 🌞 60–195V DC PV operating range
- ⚡ Maximum PV open-circuit voltage of 195V DC
This makes the inverter suitable for substantial solar arrays while still operating on a conventional 48V battery bank.
🔋 48V Battery System
The inverter operates using a 48V battery bank.
Depending on the charging configuration, it can be paired with compatible:
- 🔋 48V / 51.2V LiFePO₄ lithium batteries
- 🔋 Gel batteries
- 🔋 AGM batteries
- 🔋 Tall tubular battery banks
- 🔋 Deep-cycle lead-acid batteries
For lead-acid installations, four identical 12V batteries can typically be connected in series to form a 48V bank.
Battery charging settings should always be configured according to the exact battery chemistry being used.
🔌 Powerful Charging Capability
The IVPM10048 provides flexible charging options for installations where fast battery recovery is important.
Charging specifications include:
- 🔋 AC charging adjustable from 0–80A
- ☀️ MPPT solar charge controller rated at 120A
- ⚡ Maximum combined solar and mains charging current of up to 200A
This can be particularly useful with larger-capacity lithium battery banks.
🔄 Flexible Power Priority
The inverter allows the user to select between grid priority and battery priority, providing greater control over how stored energy and utility power are used.
This can help configure the system for:
- Maximum solar utilisation
- Backup-first operation
- Reduced grid dependence
- Battery conservation
- Off-grid applications
The inverter also supports AC charging even when the inverter unit is switched off.
🛡️ Built-In Protection
The inverter incorporates protection functions designed to improve system reliability, including:
- Overcharge protection
- Overload protection
- Short-circuit protection
- AC input protection
- Intelligent charging control
- System monitoring through the digital display
Technical details
Specifications
- 🏷️ Brand: Felicity Solar
- 🔢 Model: IVPM10048
- ⚡ Inverter Capacity: 10,000VA
- 🔌 Rated Output Power: 8000W
- 🔋 Battery Voltage: 48V DC
- 🔌 Rated AC Input Voltage: 220V AC
- 📊 AC Input Range: 90–280V AC
- 🔄 Input Frequency: 50Hz / 60Hz
- 📈 Grid Efficiency: ≥95%
- ⏱️ AC-to-DC Transfer Time: Approx. 15ms
- ⏱️ DC-to-AC Transfer Time: Approx. 15ms typical
- ⚡ Grid Maximum Bypass Current: 60A
- 🔋 Adjustable AC Charging Current: 0–80A
- ☀️ MPPT Solar Controller: 120A
- 🔆 Maximum PV Open-Circuit Voltage: 195V DC
- 🌞 PV Working Voltage Range: 60–195V DC
- ☀️ Maximum PV Input Power: 6600W
- 🔌 Maximum Mains Charging Current: 120A
- ⚡ Maximum Solar + Mains Charging Current: 200A
- 🛡️ Overcharge Protection: Yes
Questions and answers
Before you order
What is the actual output power of this 10kVA inverter?
The IVPM10048 is rated at 10,000VA with 8000W continuous output.
What battery voltage does it use?
It operates on a 48V DC battery system.
How much solar can be connected?
The stated maximum PV input is 6600W.
What is the solar voltage range?
The stated PV operating range is 60–195V DC, with a maximum PV open-circuit voltage of 195V.
Does it have an MPPT solar controller?
Yes. It includes a 120A MPPT solar charge controller.
Can it charge from the grid?
Yes. AC charging is adjustable from 0–80A, and the unit supports grid charging even while switched off.
What is the maximum combined charging current?
The published specification lists up to 200A combined mains and solar charging.
Can it work with lithium batteries?
Yes, provided the lithium battery is compatible with a 48V inverter system and the charging settings are configured correctly.
Can it power an entire house?
It can support a large range of household loads, but suitability depends on what appliances run simultaneously and their starting surges.
Is professional installation recommended?
Yes. Proper PV string sizing, battery wiring, cable selection, earthing and DC protection are essential for an inverter of this capacity.
Not sure this is the right product?
Send us what you need to power, pump or operate and we will help you confirm the best option.
