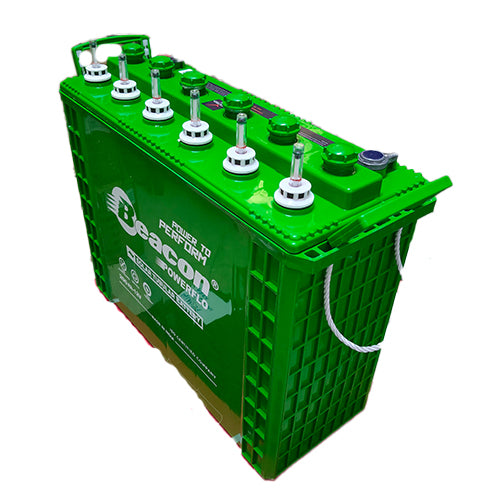

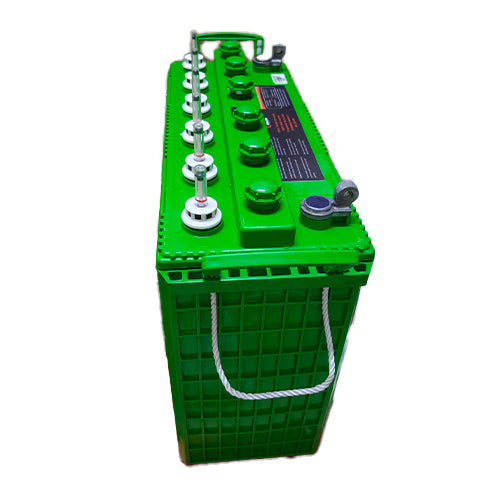

The Beacon 200Ah 12V Tubular Solar Battery is a heavy-duty deep-cycle battery designed for solar energy systems, inverter backup, homes, offices, shops and other applications that require dependable power storage.

Its tubular plate construction is designed to handle repeated charging and discharging, making it suitable for areas with frequent power outages and for daily solar cycling. With a 12V 200Ah capacity, the battery provides approximately 2.4kWh of nominal stored energy.

🔋 Key Features

• 12V 200Ah battery capacity
• Heavy-duty tubular battery construction
• Designed for solar and inverter applications
• Suitable for repeated deep-cycle use
• Good charge acceptance
• Reliable backup during power interruptions
• Electrolyte level indicators for easier maintenance
• Durable casing for long-term use
• Suitable for residential and light-commercial installations
• Compatible with appropriately configured solar charge controllers and inverters

✅ Benefits of Tubular Battery Technology

• Designed for frequent charging and discharging
• Suitable for long power outages
• Good deep-cycle performance
• Longer service life than many conventional flat-plate batteries
• Reliable operation under demanding backup conditions
• Good recovery after discharge
• Suitable for both inverter and compatible solar systems
• Lower initial cost compared with lithium batteries

💧 Electrolyte Maintenance

This is a serviceable lead-acid tubular battery, so electrolyte levels should be checked periodically.

For proper maintenance:

• Use only approved distilled or battery water when topping up
• Do not overfill the cells
• Keep terminals clean and properly tightened
• Avoid allowing the battery to remain deeply discharged for long periods
• Install in a ventilated location

Following the correct charging and maintenance procedures helps improve battery life.

🔗 Battery Bank Configuration

Multiple identical 12V batteries can be connected to create larger systems.

Examples include:

• 2 batteries in series: 24V 200Ah
• 4 batteries in series: 48V 200Ah
• 2 batteries in parallel: 12V 400Ah

All batteries in the same bank should ideally be of the same model, capacity, age and condition.

⚠️ Charging & Installation Notice

Before installation, confirm that the inverter or solar charge controller supports:

• 12V tubular lead-acid batteries
• The correct charging voltage
• Suitable charging current
• Appropriate low-voltage cut-off settings
• Correct cable sizes
• Suitable DC protection devices

Professional installation by a qualified solar technician is recommended.
