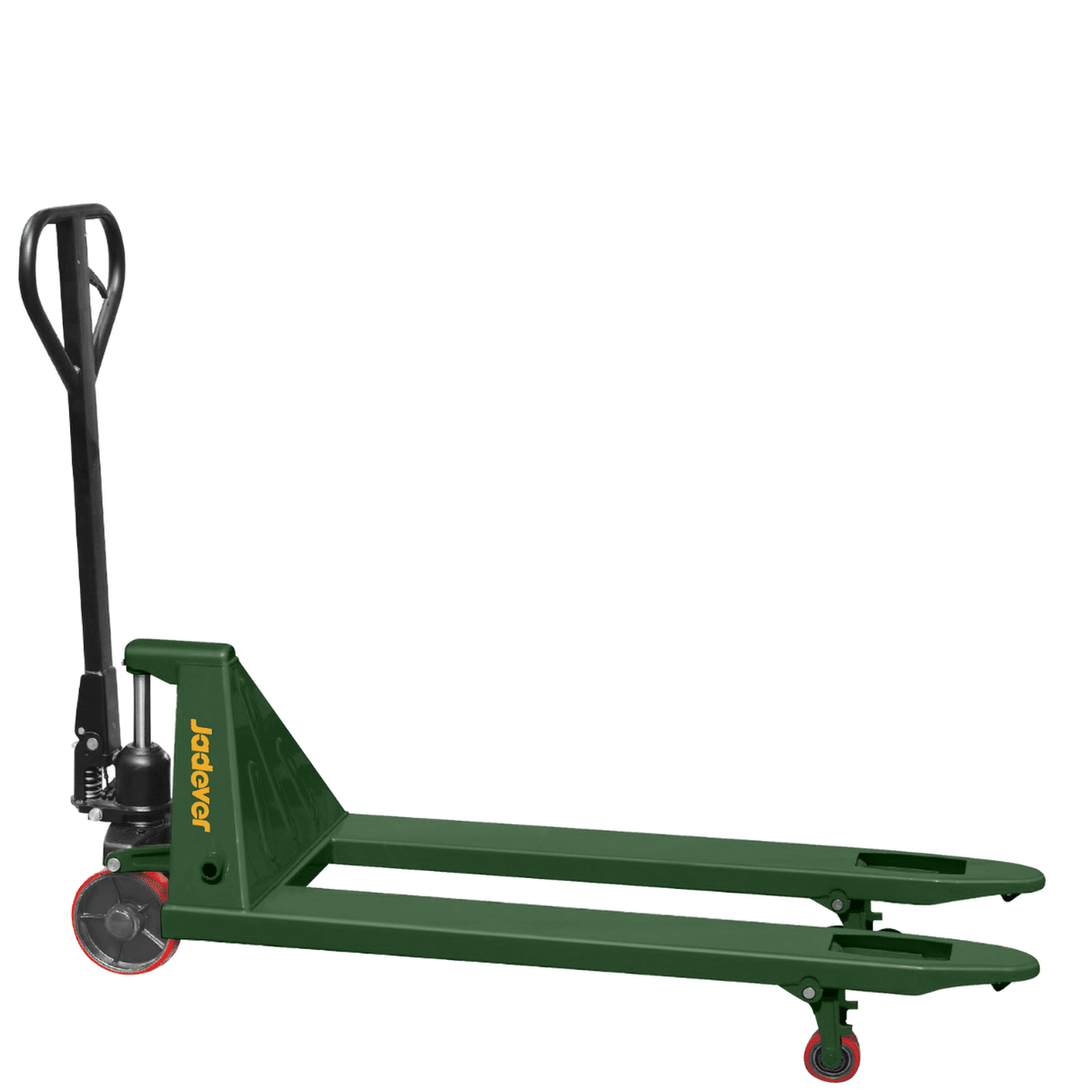

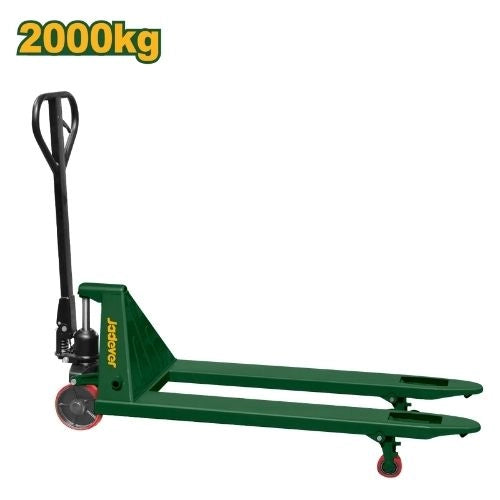

The 2000kg Hand Pallet Truck is a heavy-duty manual pallet mover designed for warehouses, factories, shops, workshops, logistics centres and loading areas.

It has a 2-ton load capacity, standard 550 × 1150mm forks, a low 75mm minimum fork height, and durable PU steering wheels and load rollers for smoother movement across warehouse and workshop floors.

🧰 Key Features

• ⚖️ Load Capacity: 2000kg
• 📏 Fork Size: 550 × 1150mm
• ⬇️ Minimum Fork Height: 75mm
• ⬆️ Maximum Fork Height: 190mm
• ↔️ Distance Between Forks: 250mm
• 📐 Fork Width: 150mm
• 🛞 Steering Wheel: PU, Ø180 × 50mm
• 🛞 Load Roller: PU, Ø74 × 70mm
• ✋ Manual hydraulic lifting
• 🏭 Suitable for warehouse and industrial use
• 📦 Packed in a plywood case

💪 2000kg Load Capacity

The pallet truck is rated to handle loads of up to 2000kg, making it suitable for common warehouse, retail and industrial pallet-handling jobs.

It can be used for:

• 📦 Palletized goods
• 🏭 Warehouse stock
• 🚚 Loading and unloading
• 🛒 Shop and supermarket stock movement
• 🧰 Workshop materials
• 🏗️ Industrial supplies

📏 550 × 1150mm Fork Size

The 550mm × 1150mm fork configuration is suitable for many standard pallet-handling applications.

The long forks provide good load support while the compact width helps with maneuvering in:

• Warehouse aisles
• Loading bays
• Storage areas
• Shops
• Workshops

⬇️ 75mm Low Fork Height

The forks lower to just 75mm, allowing the pallet truck to slide underneath compatible low-clearance pallets easily.

Once positioned, the hydraulic system raises the forks up to 190mm for transport.

🛞 PU Wheels & Load Rollers

The pallet truck uses polyurethane components for both steering and load support:

• Steering Wheels: Ø180 × 50mm PU
• Load Rollers: Ø74 × 70mm PU

PU wheels are well suited to smooth warehouse and workshop floors because they provide:

• Smooth rolling
• Reduced floor marking
• Lower operating noise
• Good wear resistance
• Stable movement under load

✅ Benefits

• Heavy 2000kg capacity
• Standard 550 × 1150mm forks
• Low 75mm entry height
• Raises to 190mm
• Durable PU wheels
• Smooth manual operation
• Suitable for frequent warehouse use
• No electricity or fuel required
• Easy to maneuver in tight spaces
• Supplied in protective plywood-case packaging

⚠️ Operating Notes

• ⚖️ Do not exceed the 2000kg maximum load capacity
• 📦 Centre loads evenly across both forks
• 🧱 Use only on firm, stable flooring
• 🚫 Do not carry people on the pallet truck
• 🛞 Inspect wheels and rollers regularly
• 🛢️ Check the hydraulic system for leaks
• ⬇️ Lower forks fully when parking
• 🔧 Maintain the steering and lifting mechanism regularly
• 🚫 Avoid sudden turns with heavy loads
