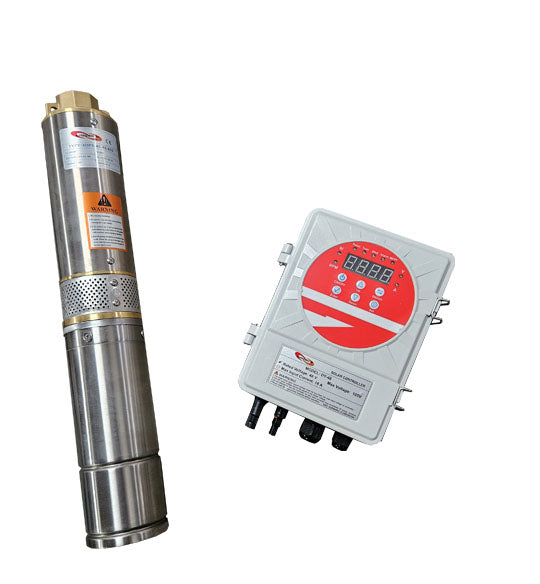

The Doyin 600W Solar Submersible Water Pump is a complete solar-powered borehole and well pumping solution designed for farms, irrigation, livestock watering, tank filling and off-grid water supply.

It features a 600W permanent-magnet brushless DC motor, maximum head of 55 metres, flow rate of up to 5m³/h, and comes with an MPPT pump controller for efficient solar operation.

💧 Key Features

• ☀️ Solar-powered submersible pump
• ⚡ 600W / 0.6kW motor
• 🐎 Approx. 0.75HP
• 🔋 60V DC operation
• 📏 Maximum head: 55 metres
• 💧 Maximum flow: 5m³/h
• 🚰 Equivalent to 5,000L/hour
• 🔩 1.25-inch outlet
• ⚙️ Permanent-magnet DC brushless synchronous motor
• 🎛️ MPPT pump controller included
• 🧱 Stainless-steel outlet and connection components
• ⚙️ Plastic impeller
• 🌾 Ideal for irrigation and farm water supply
• 🐄 Suitable for livestock watering
• 🚰 Good for tank filling
• 🌍 Designed for off-grid locations
• 🛡️ 1-year listed warranty

☀️ MPPT Solar Pump Controller

The included MPPT controller helps regulate power from the solar panels and optimise the energy supplied to the pump as sunlight conditions change.

This helps provide:

• ☀️ Better use of available solar energy
• 💧 More consistent pumping during changing sunlight
• ⚡ Efficient motor operation
• 🛡️ Improved system control
• 🌍 Reduced dependence on grid electricity or fuel

💦 High Flow Capacity

The pump can deliver up to 5m³ per hour, equivalent to approximately 5,000 litres per hour under suitable conditions.

This makes it useful for:

• 🌾 Crop irrigation
• 🐄 Livestock watering
• 🚰 Filling storage tanks
• 🌱 Garden irrigation
• 🏠 Rural household water supply
• 💧 Borehole and well pumping

📏 55-Metre Maximum Head

The pump is rated for a maximum head of 55 metres.

Actual water delivery will reduce as total head increases, so installation should consider:

• Borehole water level
• Vertical lift to the tank
• Pipe length
• Pipe diameter
• Fittings and bends

✅ Benefits

• Runs directly from solar power
• No petrol or diesel required
• Brushless motor for lower maintenance
• Up to 5,000L/h flow
• 55m head capability
• MPPT controller included
• Suitable for farms and remote locations
• Stainless-steel connection components
• Low day-to-day operating cost

⚠️ Installation Notes

• 💧 Keep the pump submerged during operation
• 🚫 Do not run the pump dry
• ☀️ Correctly size the solar-panel array
• 🎛️ Use the supplied compatible controller
• ➕➖ Observe correct DC polarity
• 🔩 Use the correct 1.25-inch delivery pipe
• 📏 Calculate total dynamic head before installation
• 🧹 Use with reasonably clean borehole or well water
• 🔧 Professional solar-pump installation is recommended
