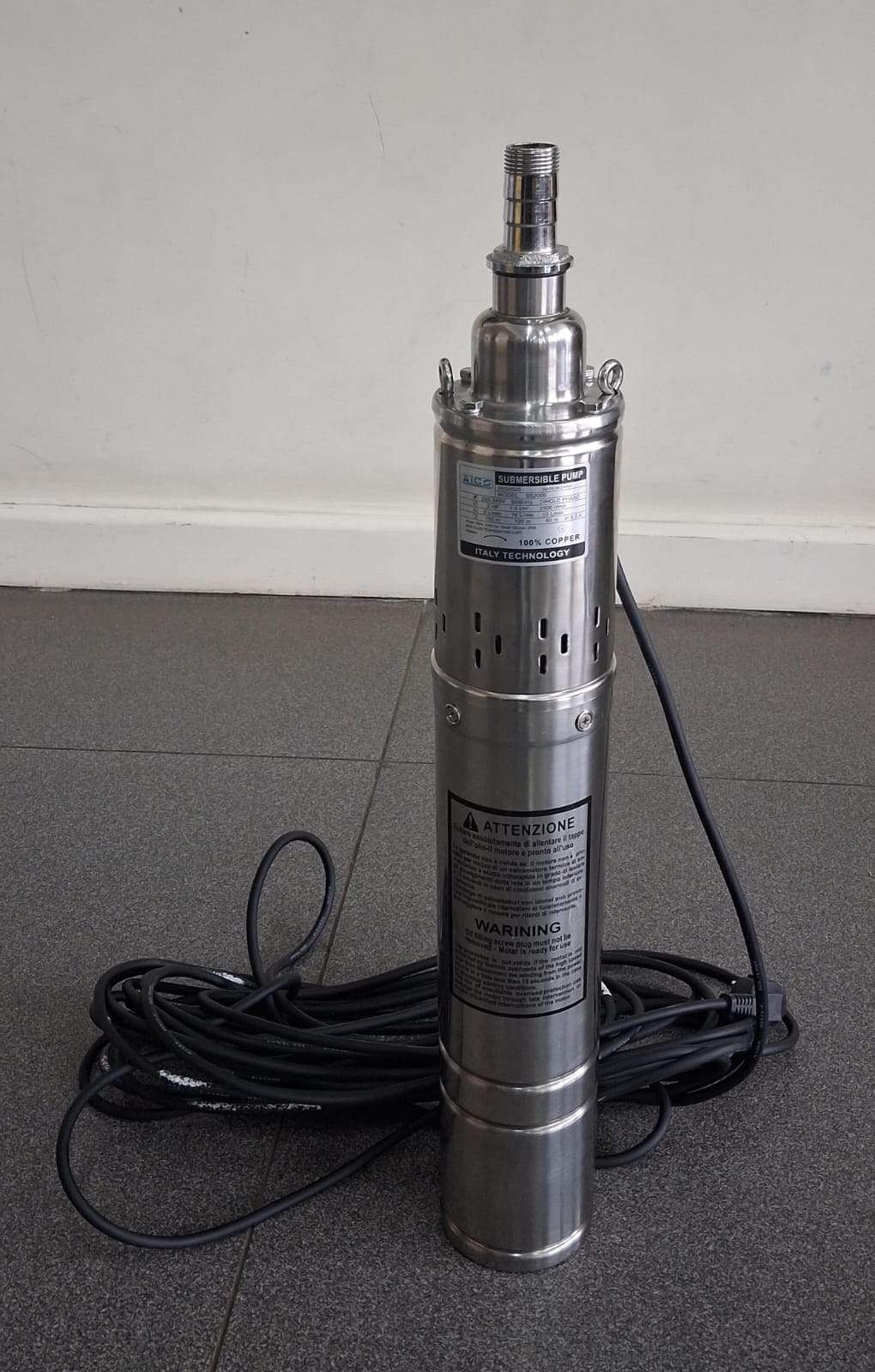

The Aico Japan SS2000 Deep Well Submersible Pump is a powerful 2HP / 1.5kW borehole pump designed for deep wells, boreholes, elevated tank filling, farm water supply and other high-head clean-water applications.

With a maximum head of 150 metres, single-phase 220–240V operation, and a maximum flow of up to 42 litres per minute, it is well suited for installations where water must be lifted from significant depth.

💧 Key Features

• ⚡ 2HP / 1.5kW motor
• 📏 Maximum head: 150 metres
• 💧 Maximum flow: 42L/min
• 🚰 Approx. 2,520L/hour
• 🔩 1-inch outlet
• 🔌 220–240V single phase
• 🔄 50/60Hz
• ⚙️ 2900 RPM
• 🔥 100% copper motor
• 🛡️ IP68 protection
• 🌡️ Maximum fluid temperature 35°C
• 💧 Designed for deep wells and boreholes
• 🏠 Suitable for domestic and agricultural water supply
• 🚰 Ideal for elevated tank filling

📈 Performance Points

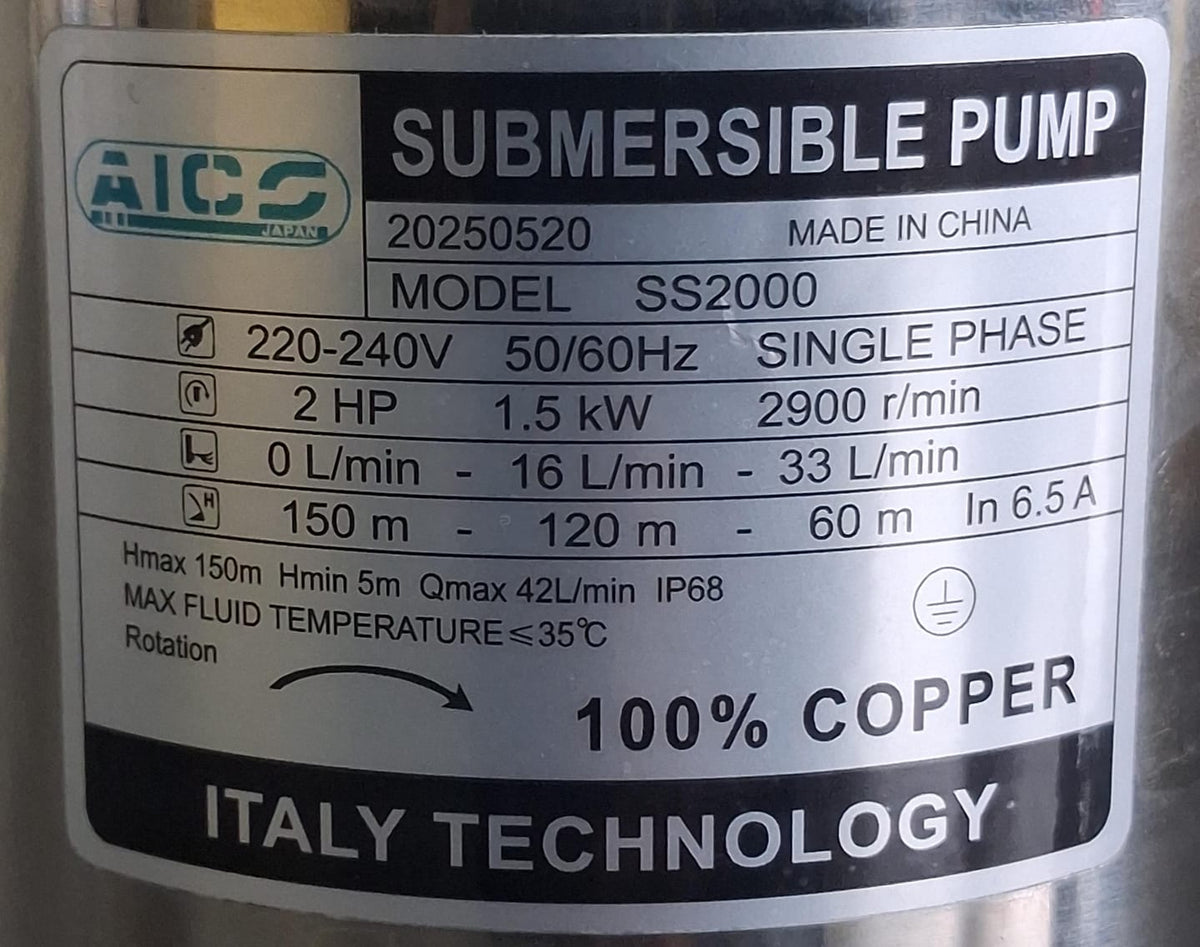

The pump label shows approximate performance at different heads:

• 📏 150m head: around 0L/min
• 📏 120m head: around 16L/min
• 📏 60m head: around 33L/min
• 💧 Maximum flow: up to 42L/min

This is important because flow reduces as the pumping height increases.

🚰 Suitable Applications

• 🕳️ Boreholes
• 💧 Deep wells
• 🚰 Elevated tank filling
• 🌾 Farm water supply
• 🐄 Livestock watering
• 🌱 Irrigation systems
• 🏠 Domestic water supply
• 🏢 Small commercial water systems

📏 150-Metre High-Head Capability

The SS2000 is best suited where lifting height is more important than extremely high flow.

Its 150m maximum head makes it useful for:

• Deep boreholes
• High elevation differences
• Long delivery lines
• Elevated storage tanks

Actual system performance will depend on static water level, delivery height, pipe size and friction losses.

✅ Benefits

• Strong 2HP motor
• High 150m head
• 100% copper winding
• IP68 submersible protection
• Single-phase operation
• Suitable for deep boreholes
• Stainless-steel body
• Good balance of pressure and flow
• Ideal for domestic, farm and light commercial use

⚠️ Important Operating Notes

• 💧 Keep the pump fully submerged during operation
• 🚫 Do not run the pump dry
• 🌍 Ensure proper earthing
• 🔌 Use correctly rated motor protection
• 🛡️ Use a suitable control box where required
• 📏 Use correctly sized delivery pipe
• 🧹 Use with clean water
• 🌡️ Do not exceed 35°C water temperature
• 🔧 Professional borehole installation is recommended
