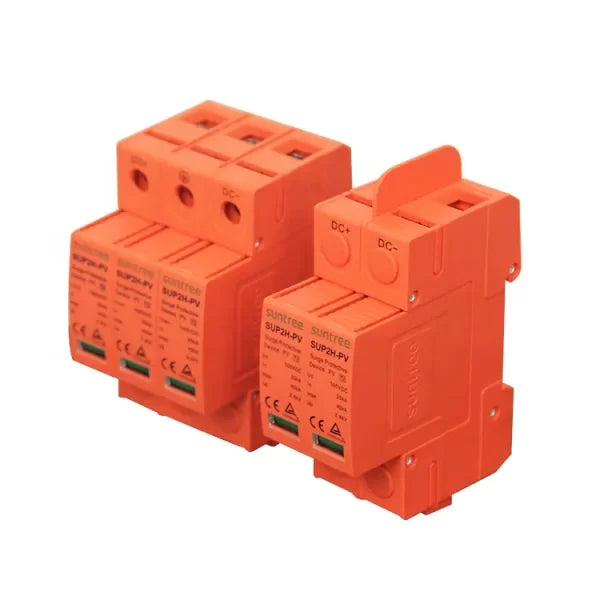

The Suntree DC Surge Protector is designed to protect solar PV systems against lightning-induced surges and transient overvoltages on the DC side of the installation.

It is suitable for use in solar combiner boxes, PV arrays, inverter DC inputs and other photovoltaic DC networks. The supplier lists this version as 2 Pole / 550V DC, with a 40kA surge rating.

⚡ Key Features

• ☀️ Designed for solar PV DC systems
• ⚡ Surge Capacity: 40kA
• 🔋 Voltage Rating: 550V DC
• ⚙️ Poles: 2 Pole
• 🌩️ Protects against lightning-induced surges
• 🛡️ Helps protect inverters and other DC equipment
• 🔥 High-energy MOV protection
• 🌡️ Integrated thermal disconnectors
• 🚨 Failure/status indication
• 🧰 DIN-rail mounting
• 📦 Suitable for solar combiner boxes
• 🏠 Suitable for residential solar systems
• 🏢 Suitable for commercial PV installations

The supplier recommends installing DC surge protection at both ends of long or externally routed DC power lines, such as near the solar-array side and inverter/converter side.

☀️ Suitable Applications

• 📦 Solar PV combiner boxes
• ☀️ Solar panel arrays
• ⚡ Inverter DC input protection
• 🔋 Charge-controller DC circuits
• 🏠 Home solar installations
• 🏢 Commercial PV systems
• 🌾 Farm and off-grid solar systems
• 🔌 Long outdoor DC cable runs

🌩️ Why a DC Surge Protector Is Important

Solar panels and their cabling are often installed outdoors, where long DC cable runs can be exposed to electrical surges caused by nearby lightning or switching events.

An SPD helps divert excessive transient voltage away from sensitive equipment, reducing the risk of damage to:

• ⚡ Solar inverters
• 🔋 Charge controllers
• 📦 Combiner boxes
• 🔌 DC wiring
• ☀️ Connected PV equipment

✅ Benefits

• Helps protect expensive solar equipment
• 40kA surge-handling capability
• 550V DC system compatibility
• 2-pole protection
• Compact DIN-rail design
• Easy installation in PV combiner boxes
• Visual failure indication
• Suitable for residential and commercial systems

⚠️ Installation Notes

• 🔋 Confirm the PV system voltage is within the SPD's 550V DC rating
• 🌍 Proper earthing is essential for surge protection to work correctly
• 📏 Keep SPD earth connections short and direct
• ⚡ Install according to the solar-system protection design
• 🔌 Use correctly rated DC cables and terminals
• 🛡️ Coordinate the SPD with suitable breakers or fuses
• 🚫 Disconnect PV power before installation or servicing
• 🔧 Installation should be done by a qualified solar technician
