Product overview
Reliable performance without the guesswork.
Review the product details, specifications and support information below before ordering.
- 🏠 Home solar backup systems
- 🏢 Offices
- 🏪 Shops and retail premises
- 🌍 Off-grid homes
- ☀️ Hybrid solar installations
- 📹 CCTV and security systems
- 📡 Communication equipment
- 🧊 Refrigeration backup
- 💧 Selected pumping applications
- ⚡ Areas with frequent grid interruptions
With 5000W continuous output and up to 10,000VA peak power, the inverter can support a broad range of residential and business loads, including:
- 💡 Household lighting
- 📺 Televisions
- 📡 Wi-Fi routers
- 💻 Computers and laptops
- 🧊 Refrigerators and freezers
- 🌀 Fans
- 📹 CCTV and security equipment
- 🖨️ Office equipment
- 🧺 Washing machines
- 💧 Selected water pumps
- 🏪 Shop equipment
- ⚙️ Selected motor-driven appliances
The stated motor capacity is up to 4HP, but motor starting current, simultaneous loads and battery capability should still be considered when designing the system.

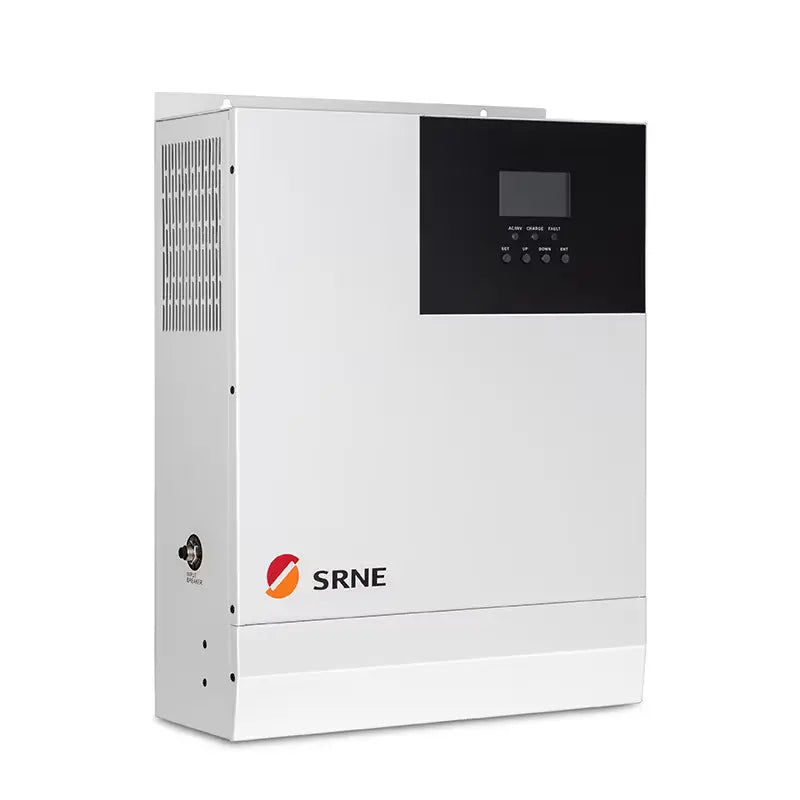

The SRNE HFP4850S80-H 5kW Hybrid Solar Inverter is a powerful all-in-one solution designed for home solar systems, offices, shops, backup installations and off-grid applications.
It delivers 5000W continuous output, works with a 48V battery bank, and combines pure sine wave inversion, MPPT solar charging and intelligent battery management in one compact wall-mounted unit. With a 500V maximum PV input, flexible charging modes and support for both lithium and lead-acid batteries, it is well suited to medium-size solar installations.
⚡ Key Features
- ⚡ 5000W rated continuous output
- 🚀 10,000VA maximum peak power
- 🔋 48V battery system
- 🌊 Pure sine wave AC output
- ☀️ Advanced MPPT solar charging
- 📈 MPPT tracking efficiency up to 99.9%
- 🔆 Maximum PV open-circuit voltage of 500V DC
- 🔋 Maximum hybrid charging current of 80A
- ⚙️ Supports motor loads of up to 4HP
- 🔄 Four selectable charging modes
- 🔋 Supports lithium and lead-acid battery technologies
- 🔗 Supports lithium battery BMS communication
- 🛡️ Integrated hardware and software protection
- 🏠 Suitable for home and light-commercial solar systems
- 🌍 Ideal for off-grid and backup-power applications
☀️ High-Voltage MPPT Solar Charging
The SRNE HFP4850S80-H uses advanced MPPT technology with tracking efficiency of up to 99.9%, helping the inverter maximise energy harvested from the solar panels.
Its high-voltage PV input supports up to 500V DC open-circuit voltage, allowing longer solar-panel strings and reducing the need for many parallel PV connections.
Benefits include:
- ☀️ Better solar energy harvesting
- 📉 Reduced PV cable current
- ⚡ Reduced cable losses
- 🔌 Cleaner solar-array wiring
- 🏠 Greater flexibility when designing rooftop or ground-mounted arrays
The exact PV string configuration should be calculated from the panel Voc, Vmp and the inverter's MPPT operating limits before installation.
🔄 Four Charging Modes
The inverter provides flexible battery-charging options to suit different solar installations:
- ☀️ Solar Only – prioritises solar energy for battery charging
- 🔌 Mains Priority – prioritises utility/grid charging
- ☀️ Solar Priority – solar is used first, with grid support when necessary
- ⚡ Mains + Solar Hybrid Charging – combines available solar and grid power
This allows the system to be configured for maximum solar use, stronger backup availability or faster battery charging.
🔋 Wide Battery Compatibility
The inverter supports several battery technologies, including:
- 🔋 LiFePO₄ lithium batteries
- 🔋 Other compatible lithium batteries
- 🔋 GEL batteries
- 🔋 Sealed lead-acid batteries
- 🔋 Flooded deep-cycle batteries
It also supports communication with compatible lithium battery BMS systems, allowing the inverter and battery to exchange important operating information.
✅ Benefits
- High 5kW continuous power output
- 48V battery architecture
- High-voltage 500V PV input
- Up to 99.9% MPPT tracking efficiency
- Pure sine wave output
- Flexible charging priorities
- Compatible with several battery chemistries
- Lithium BMS communication support
- High surge capability
- Suitable for larger home and small-business systems
🛡️ Protection & Reliability
SRNE describes the inverter as having comprehensive protection at both hardware and software levels, helping improve safe and stable operation.
Correct external protection should still include:
- ⚡ DC breakers or fuses
- ☀️ PV DC isolator
- 🛡️ Surge protection
- 🌍 Proper earthing
- 🔋 Battery protection
- 🔌 Correctly sized AC breakers
- 📏 Properly sized battery and PV cables
Technical details
Specifications
- 🏷️ Brand: SRNE
- 🔢 Model: HFP4850S80-H
- ⚡ Rated Output Power: 5000W
- 🚀 Maximum Peak Power: 10,000VA
- 🔋 Battery System: 48V
- 🔋 Battery Voltage Range: 40–60V DC ±0.6V
- 🔌 Rated AC Output Voltage: 230V AC
- 🔄 Output Frequency: 50Hz / 60Hz
- 🌊 Output Waveform: Pure sine wave
- ⚙️ Motor Load Capacity: Up to 4HP
- ☀️ Number of MPPT Trackers: 1
- 🔆 Maximum PV Open-Circuit Voltage: 500V DC
- 🔋 Maximum Hybrid Charging Current: 80A
- 🔗 Battery Communication: Lithium-ion BMS communication supported
- 🔋 Supported Battery Types: Sealed, Flooded, GEL, LiFePO₄ / LFP and Ternary lithium
- ✅ Certifications: IEC, SAA, cETL and FCC
Questions and answers
Before you order
What is the inverter's rated power?
It provides 5000W continuous output.
What is the maximum surge power?
The rated peak power is 10,000VA.
What battery system does it use?
It operates on a 48V battery system, with a stated battery operating range of approximately 40–60V DC.
What is the maximum PV voltage?
The maximum PV open-circuit voltage is 500V DC.
Does it use MPPT solar charging?
Yes. It includes an MPPT tracker rated at up to 99.9% tracking efficiency.
What is the maximum hybrid charging current?
The published specification lists 80A.
Can it work with lithium batteries?
Yes. It supports LiFePO₄ and other compatible lithium battery types and also supports lithium BMS communication.
Can it work with GEL batteries?
Yes. GEL, sealed and flooded batteries are also supported.
Can it run a water pump?
It can support compatible motor loads, with the retailer listing motor capacity of up to 4HP. Actual pump starting current and the other connected loads should still be checked.
Can it power an entire house?
It can support many household appliances simultaneously, but whole-house suitability depends on total load, appliance starting surges and battery capacity.
Is professional installation recommended?
Yes. With PV input potentially reaching 500V DC, correct string sizing, earthing, DC protection, battery wiring and cable sizing are essential.
Not sure this is the right product?
Send us what you need to power, pump or operate and we will help you confirm the best option.
