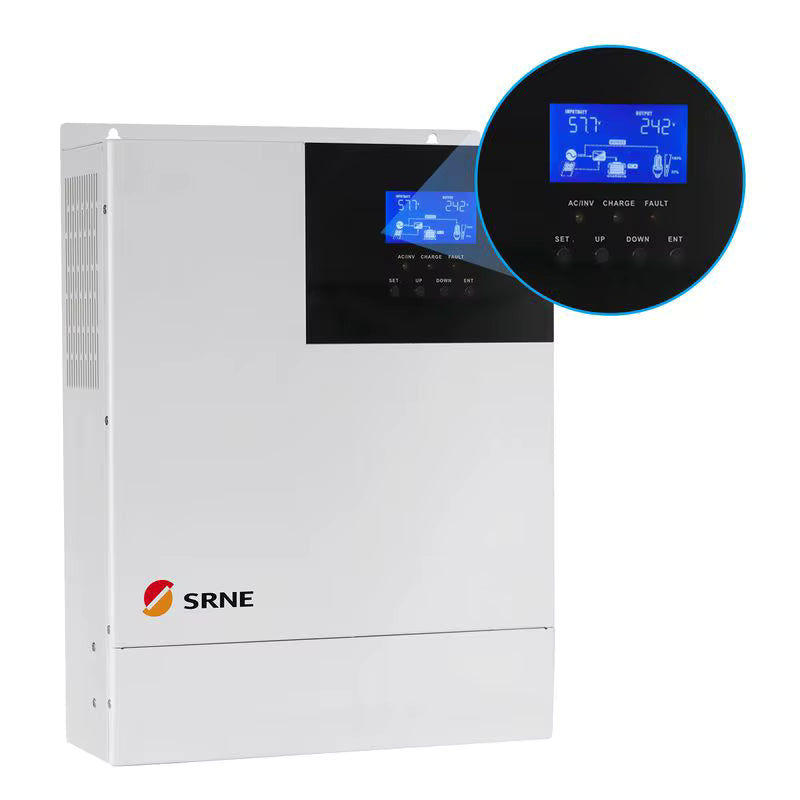

The SRNE HF2420S60 2kW 24V Hybrid Solar Inverter is a compact all-in-one solution for residential solar systems, shops, offices and off-grid backup installations.

It combines a pure sine wave inverter, MPPT solar charger and AC battery charger in one unit. With a 24V battery system, 60A solar charging, up to 1600W PV input and flexible compatibility with lithium and lead-acid batteries, it is well suited for essential household and business loads.

⚡ Key Features

• ⚡ 2000W rated output
• 🔋 24V DC battery system
• 🌊 Pure sine wave AC output
• ☀️ Built-in MPPT solar charger
• 🔋 Up to 60A solar charging current
• 🔌 Up to 60A AC charging current
• ⚡ Up to 120A combined charging current
• ☀️ Up to 1600W solar PV input
• 🔆 Maximum PV open-circuit voltage of 100V DC
• 📈 MPPT tracking efficiency up to 99.9%
• ⏱️ Approx. 10ms transfer time
• 🔋 Supports lithium and lead-acid batteries
• 📟 LCD system monitoring
• 📶 Wi-Fi monitoring support on compatible configurations
• 🛡️ Multiple built-in protection functions
• 🏠 Suitable for residential and small commercial solar installations

☀️ MPPT Solar Charging

The integrated MPPT charger is designed to maximise the energy harvested from the connected solar array.

Its solar input supports:

• ☀️ Up to 1600W of solar panels
• 🔆 30–85V DC MPPT operating range
• ⚡ Up to 40A PV input current
• 🔋 Up to 60A solar charging
• ⚡ Maximum PV open-circuit voltage of 100V DC

This allows several compatible solar panels to be connected in series while keeping the array within the inverter’s approved PV limits.

🔋 24V Battery Compatibility

The SRNE inverter is designed for a 24V battery bank and can support compatible:

• 🔋 LiFePO₄ lithium batteries
• 🔋 Other lithium battery systems
• 🔋 GEL batteries
• 🔋 AGM batteries
• 🔋 Flooded deep-cycle lead-acid batteries

SRNE also supports programmable battery settings, allowing charging parameters to be matched to suitable battery types.

🔄 Solar, Grid & Battery Operation

The inverter can manage power from:

• ☀️ Solar panels
• 🔋 Battery storage
• 🔌 Utility/grid electricity
• ⚙️ Compatible generator supply

Its programmable operating modes allow solar, grid and battery usage to be prioritised according to the installation requirements.

🛡️ Built-In Protection

The inverter includes multiple protection functions, including:

• ⚡ Short-circuit protection
• 🔌 Overload protection
• 🔄 Reverse-polarity protection
• 🔋 Battery under-voltage protection
• 🔋 Battery over-voltage protection
• 🔌 AC under-voltage and over-voltage protection
• 🌬️ Intelligent variable-speed cooling fans
