Product overview
Reliable performance without the guesswork.
Review the product details, specifications and support information below before ordering.
With 12kW continuous output and up to 24kVA peak power, the inverter can support substantial residential and business loads such as:
- 💡 Household and commercial lighting
- 📺 Televisions
- 💻 Computers and office equipment
- 📡 Wi-Fi and networking systems
- 🧊 Refrigerators and freezers
- 🌀 Fans
- 📹 CCTV and security systems
- 🧺 Washing machines
- 🍳 Microwaves and selected kitchen appliances
- 👔 Iron boxes
- 🧹 Vacuum cleaners
- 💧 Water pumps
- 🏪 Shop and commercial equipment
- ⚙️ Selected motor-driven loads
The referenced product specifically lists appliances including washing machines, microwaves, refrigerators and pumps among supported use cases.

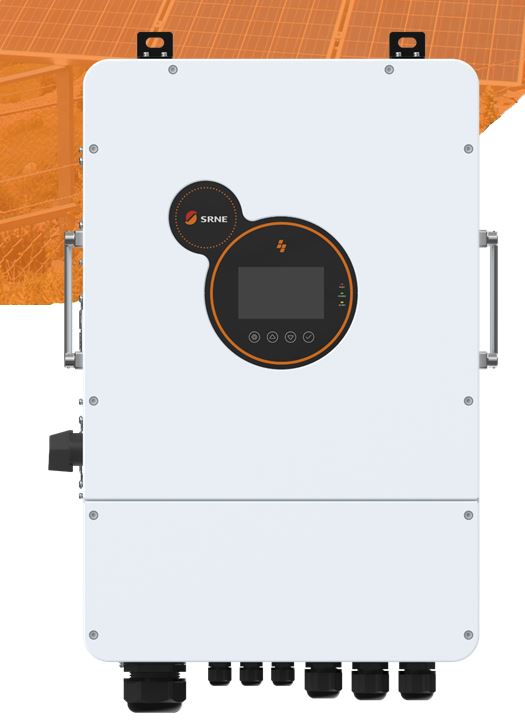

The SRNE HESP48120S200-H 12kW Hybrid Solar Inverter is a high-capacity 48V single-phase inverter designed for large homes, offices, shops, commercial premises and advanced solar backup installations.
It combines high-voltage solar input, battery storage, grid power and generator support in one system. With dual independent MPPTs, up to 13.2kW PV input, 200A hybrid charging, 24kVA peak output and IP65 protection, it is designed for demanding residential and light-commercial solar systems.
⚡ Key Features
- ⚡ 12,000W rated output power
- 🚀 24,000VA maximum peak output
- 🔋 48V DC battery system
- 🌊 Pure sine wave output
- ☀️ 2 independent MPPT solar trackers
- 🔆 Up to 13.2kW total PV input
- ⚡ 500V DC maximum PV open-circuit voltage per MPPT
- ☀️ 120–450V DC MPPT operating range
- 🔋 Maximum solar charging current of 200A
- 🔌 Maximum grid charging current of 120A
- ⛽ Maximum generator charging current of 60A
- ⚡ Maximum hybrid charging current of 200A
- ⏱️ Fast 10ms typical transfer time
- 🔋 Supports lithium, lead-acid and user-defined batteries
- 🔗 RS485 / CAN battery communication
- ⛽ Separate generator input
- 🔄 AC-coupling support
- ⏰ Peak-valley time-slot energy management
- 💧 IP65 protection rating
- 🔗 Supports up to 6 units in parallel
- ⚡ Three-phase output possible using 3 or more compatible units
- 📶 Optional Wi-Fi / GPRS monitoring
- 🛡️ Comprehensive electrical and PV protection functions
- ✅ 5-year warranty
☀️ Dual High-Voltage MPPT Solar Input
The inverter includes two independent MPPT trackers, each supporting up to 6.6kW of PV, giving a total solar-array capacity of up to approximately 13.2kW.
The dual-MPPT design is useful when:
- ☀️ Solar panels face different directions
- 🏠 Panels are installed on separate roof sections
- 🌤️ One array experiences different shading conditions
- 🔌 Different solar-string configurations are required
Each MPPT operates within a 120–450V DC range and supports up to 500V DC open-circuit voltage.
🔋 48V Battery Compatibility
The inverter supports compatible:
- 🔋 48V / 51.2V LiFePO₄ batteries
- 🔋 Lithium-ion battery systems
- 🔋 Gel batteries
- 🔋 AGM batteries
- 🔋 Flooded deep-cycle batteries
- ⚙️ User-defined battery configurations
It supports CAN and RS485 communication, allowing compatible lithium battery BMS systems to communicate directly with the inverter.
⚡ Powerful Battery Charging
The HESP48120S200-H provides substantial charging capability for large battery banks:
- ☀️ Solar charging: Up to 200A
- 🔌 Grid charging: Up to 120A
- ⛽ Generator charging: Up to 60A
- ⚡ Combined hybrid charging: Up to 200A
This makes it particularly suitable for larger lithium storage systems requiring faster recharge times.
⛽ Generator & AC Coupling Support
A dedicated generator input allows the inverter to use generator power when solar production, battery capacity or grid availability is insufficient.
The inverter also supports AC coupling, providing greater flexibility when integrating compatible existing solar-generation systems.
🔗 Parallel & Three-Phase Expansion
The SRNE platform supports 1 to 6 units in parallel.
With 3 or more compatible units, the system can also be configured to provide three-phase output, making the platform suitable for larger installations and future expansion.
💧 IP65 Protection
The IP65 enclosure provides protection against dust and water jets, allowing greater flexibility in installation location than standard indoor-only inverters.
Even with IP65 protection, installation should still follow SRNE's clearance, ventilation and environmental requirements.
🛡️ Built-In Protection
Protection features include:
- ☀️ PV reverse-polarity protection
- ⚡ PV input current limiting
- 🔆 PV input over-voltage protection
- 🔌 Output short-circuit protection
- ⚡ Output over-current protection
- 🔄 Anti-islanding protection
- 📊 Residual-current monitoring
- 🛡️ Insulation-resistance monitoring
- ⚡ AC/DC over-voltage protection
- 🌩️ AC and DC surge protection
- 🔥 Inverter overload protection
Technical details
Specifications
- 🏷️ Brand: SRNE
- 🔢 Model: HESP48120S200-H
- ⚡ Rated AC Output: 12,000W
- 🚀 Maximum Load Output: 24,000VA
- 🔌 Rated Output Voltage: 230V AC ±5%
- 🔄 Output Frequency: 50Hz / 60Hz ±0.3Hz
- ⚡ Rated Grid Output Current: 52.2A
- ⚡ Maximum Grid Output Current: 54.4A
- 📉 Output THD: Less than 3%
- 🔋 Rated Battery Voltage: 48V
- 🔋 Battery Operating Range: 40–60V DC
- 🔋 Supported Batteries: Lead-acid / Lithium-ion / User-defined
- ☀️ Number of MPPTs: 2
- 🔆 Maximum PV Input: 6.6kW + 6.6kW
- ⚡ Maximum PV Input Current: 22A + 22A
- ⚡ Maximum PV Short-Circuit Current: 37A + 37A
- ☀️ Maximum PV Open-Circuit Voltage: 500V DC + 500V DC
- 🔆 MPPT Voltage Range: 120–450V DC
- 🔋 Maximum Solar Charge Current: 200A
- ⛽ Maximum Generator Charge Current: 60A
- 🔌 Maximum Grid Charge Current: 120A
- ⚡ Maximum Hybrid Charge Current: 200A
- 🔌 UPS Input Range: 170–280V AC
- 🏠 Appliance Input Range: 90–280V AC
- 📈 MPPT Tracking Efficiency: 99.9%
- ⚡ Maximum Efficiency: 97.5%
- 🇪🇺 European Efficiency: 97%
- 🔗 Parallel Capacity: 1–6 units
- 📐 Dimensions: 670 × 440 × 220mm
- ⚖️ Weight: Approximately 37kg
- 💧 Protection Rating: IP65
- 🌡️ Operating Temperature: -25°C to 60°C; derating above 45°C
- 🌬️ Cooling: Fan cooling
- 🔗 Communication: RS485 / CAN / USB / Dry Contact
- 📶 Optional Communication: Wi-Fi / GPRS
- 🛡️ Warranty: 5 years
Questions and answers
Before you order
What is the inverter's rated output?
It provides 12,000W continuous output.
What is its peak output capability?
The stated maximum load output is 24,000VA.
What battery voltage does it use?
It operates on a 48V battery system, with a stated battery range of 40–60V DC.
How much solar can it handle?
The 12kW model supports up to 6.6kW + 6.6kW, or approximately 13.2kW total PV input.
What is the MPPT range?
The MPPT operating range is 120–450V DC.
Does it have dual MPPT?
Yes. It includes 2 independent MPPT trackers.
Can it work with lithium batteries?
Yes. It supports lithium batteries and includes CAN/RS485 communication for compatible BMS systems.
Can it work with a generator?
Yes. It has a separate generator input and supports generator charging.
Can multiple units be connected?
Yes. Up to 6 units can operate in parallel.
Can it provide three-phase power?
Yes. Three-phase output can be configured using at least three compatible units.
What is the warranty?
The listed warranty is 5 years.
