Product overview
Reliable performance without the guesswork.
Review the product details, specifications and support information below before ordering.
- 🏠 Large residential solar systems
- 🏢 Offices
- 🏪 Shops and retail premises
- 🌍 Off-grid properties
- ☀️ Hybrid solar installations
- 🧊 Refrigeration backup
- 💧 Water-pumping systems
- 📹 CCTV and security installations
- 📡 Communication equipment
- 🏭 Selected commercial applications
- ⚡ Areas with frequent or prolonged power interruptions
With 8.8kW continuous output, the inverter can support a substantial combination of residential and business loads such as:
- 💡 Household and commercial lighting
- 📺 Televisions
- 💻 Computers and office equipment
- 📡 Wi-Fi and networking equipment
- 🧊 Refrigerators and freezers
- 🌀 Fans
- 📹 CCTV systems
- 🧺 Washing machines
- 🍳 Selected kitchen appliances
- 💧 Water pumps
- 🏪 Shop equipment
- ⚙️ Selected motor-driven equipment
The referenced product specifies support for motor loads up to 5HP, although actual motor starting current and simultaneous loads should still be considered.

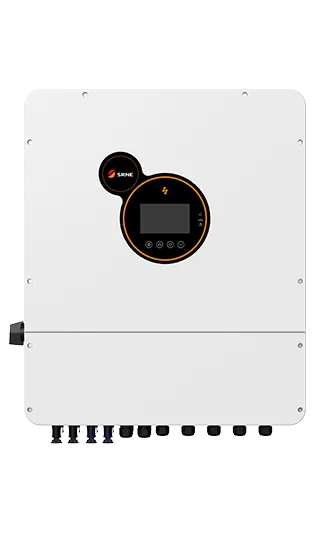

The SRNE 8kVA High-Frequency Hybrid Solar Inverter is a powerful energy-management solution designed for larger homes, offices, shops, commercial premises and advanced solar backup systems.
It works with a 48V battery bank and supports solar, battery, grid and generator power. With dual independent MPPT inputs, AC-coupling support, a separate generator port and IP65 protection, it is suitable for both demanding residential and commercial installations.
⚡ Key Features
- ⚡ 8.8kW rated output power
- 🚀 17.6kVA maximum peak output
- 🔋 48V battery system
- 🌊 Pure sine wave AC output
- ☀️ 2 independent MPPT trackers
- 🔆 High-voltage PV input up to 500V DC
- 📈 MPPT tracking efficiency up to 99.9%
- 🔋 Supports lithium and lead-acid batteries
- 🔗 Lithium BMS communication support
- ⛽ Dedicated generator input
- 🔄 AC-coupling support
- ⏰ Time-slot / peak-valley energy-management function
- 💧 IP65 protection rating
- ⚙️ Supports motor loads up to 5HP
- ⏱️ Approx. 10ms transfer time
- 🔗 Parallel system expansion supported
- 📶 Optional Wi-Fi / GPRS communication on supported configuration
- 🛡️ Multiple hardware and software protection functions
☀️ Dual MPPT Solar Input
The dual MPPT design allows the solar array to be split into two independent strings.
This is useful when:
- ☀️ Panels face different directions
- 🏠 Panels are installed on separate roof sections
- 🌤️ One section experiences different shading conditions
- 🔌 The system requires more flexible string configuration
Independent MPPT tracking allows each solar input to operate closer to its own optimum power point.
🔋 48V Battery Compatibility
The inverter is designed for compatible 48V-class battery systems, including:
- 🔋 48V / 51.2V LiFePO₄ lithium batteries
- 🔋 Compatible lithium-ion batteries
- 🔋 Gel battery banks
- 🔋 AGM batteries
- 🔋 Deep-cycle lead-acid batteries
SRNE's corresponding 8–12kW platform supports CAN and RS485 battery communication, allowing compatible lithium battery BMS systems to exchange operating information with the inverter.
⛽ Dedicated Generator Support
The inverter includes support for generator input, making it useful for installations where solar and grid power may not always be sufficient.
A generator can provide:
- 🔋 Emergency battery charging
- ⚡ Backup during prolonged cloudy weather
- 🏠 Additional support during extended grid outages
- 🔌 Power when battery capacity becomes low
🔄 AC Coupling Support
AC coupling allows the inverter to work more flexibly with certain existing solar installations, including compatible grid-tied systems.
This can be useful when upgrading or expanding an existing solar installation rather than replacing the entire system.
💧 IP65 Protection
The IP65 enclosure rating provides protection against dust and water jets, making the inverter more suitable for demanding installation environments than standard indoor-only units.
It should still be installed according to the manufacturer's clearance, ventilation and mounting requirements.
✅ Benefits
- Powerful 8.8kW continuous output
- High 17.6kVA surge capability
- Dual independent MPPT inputs
- High-voltage solar input
- 48V battery architecture
- Lithium BMS communication support
- Dedicated generator connection
- AC-coupling capability
- IP65 weather-resistant enclosure
- High MPPT and inverter efficiency
- Suitable for larger residential and commercial systems
Technical details
Specifications
🏷️ Brand: SRNE
- ⚡ Rated Output Power: 8,800W
- 🚀 Maximum Peak Power: 17,600VA
- 🔋 Rated Battery Voltage: 48V DC
- 🔋 Battery Voltage Range: Approximately 40–60V DC
- 🔌 Rated AC Output Voltage: 230V on the referenced Kenyan configuration
- 🔄 Rated Frequency: 50Hz / 60Hz
- ⚙️ Motor Load Capacity: Up to 5HP
- ☀️ Number of MPPT Trackers: 2
- 🔆 Maximum PV Open-Circuit Voltage: 500V DC
- ☀️ MPPT Voltage Range: Approximately 125–425V DC
- ⚡ Maximum PV Input Current: Up to 22A + 22A on the corresponding SRNE 8kW platform
- 🔋 Maximum MPPT Charging Current: Up to 200A on the corresponding SRNE platform
- 🔌 Maximum Grid / Generator Charging Current: Up to 120A
- ⚡ Maximum Hybrid Charging Current: Up to 200A
- 📈 Maximum Efficiency: Up to 97.5%
- ☀️ MPPT Tracking Efficiency: Up to 99.9%
- ⏱️ Transfer Time: Approx. 10ms
- 💧 Protection Rating: IP65
- 🌡️ Operating Temperature: Approximately -25°C to 60°C
- 🔗 Communication: RS485 / CAN / USB / Dry Contact
- 📶 Optional Communication: Wi-Fi / GPRS
- 🛡️ Warranty: Up to 5 years on the corresponding SRNE HES platform
Questions and answers
Before you order
What is the rated output power?
The referenced SRNE 8kVA model is rated at 8,800W.
What is the maximum peak output?
The stated peak output is 17,600VA.
What battery voltage does it use?
It is designed for 48V battery storage systems.
Does it have dual MPPT?
Yes. It has 2 independent MPPT trackers.
What is the maximum PV voltage?
The corresponding SRNE 8–12kW platform supports up to 500V DC PV open-circuit voltage.
Can it work with lithium batteries?
Yes. SRNE lists lithium-ion, lead-acid and user-defined battery support, together with BMS communication.
Can it work with a generator?
Yes. The referenced model includes a separate generator port.
Can it run a water pump?
Yes, depending on the pump specification. The referenced unit lists motor-load capability up to 5HP.
Is it weather-resistant?
Yes. It carries an IP65 protection rating.
Can it power an entire house?
It can support a substantial whole-home load, but suitability depends on simultaneous appliance consumption, motor starting surges, battery capacity and available solar power.
Is professional installation recommended?
Yes. High-voltage PV systems and large 48V battery banks require correct string sizing, DC protection, earthing, battery configuration and properly sized cabling.
Not sure this is the right product?
Send us what you need to power, pump or operate and we will help you confirm the best option.
