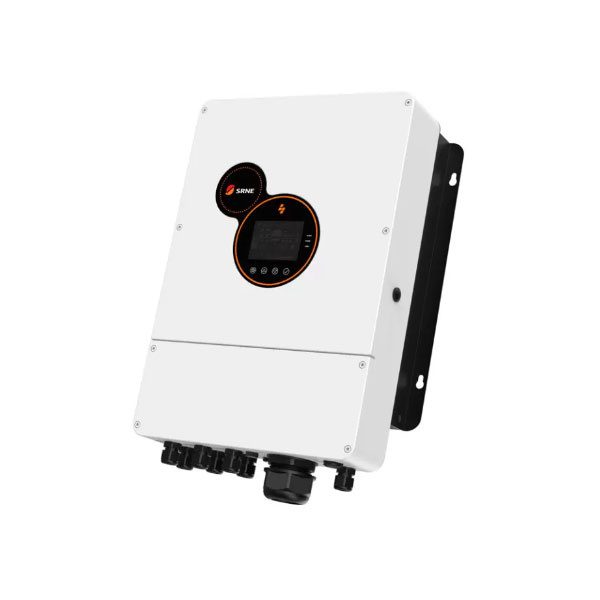

The SRNE 6kW 48V Off-Grid Hybrid Solar Inverter is a high-performance all-in-one inverter designed for residential solar systems, offices, shops and off-grid backup applications.

It combines solar energy storage, battery charging and AC sine wave output in one system. The inverter uses advanced DSP control and intelligent power-management algorithms for fast response, stable operation and dependable performance.

⚡ Key Features

• ⚡ 6000W rated output power
• 🔋 48V battery system
• ☀️ Built-in MPPT solar charge controller
• 🔋 100A solar charge controller
• 🔆 Maximum PV input voltage up to 500V DC
• 🌊 AC sine wave output
• 🔌 220V / 230V AC output
• 📶 Wi-Fi module support
• 🔄 Hybrid solar, battery and utility operation
• 🏠 Suitable for residential and commercial backup
• 🌍 Ideal for off-grid solar installations
• ⚙️ Advanced DSP control for fast response
• 🛡️ Designed for high reliability and industrial-standard operation

☀️ High-Voltage Solar Input

The inverter supports PV input of up to 500V DC, allowing higher-voltage solar-panel strings to be used.

This can provide several installation advantages:

• Reduced solar-side current
• Lower cable losses
• Longer series strings
• Cleaner PV wiring
• Easier configuration of larger solar arrays
• Better suitability for longer distances between panels and inverter

The exact panel configuration should always be calculated from the panels' Voc, Vmp and the inverter's approved MPPT limits.

🔋 Powerful 100A MPPT Charging

The built-in 100A MPPT solar charge controller is designed to efficiently convert solar energy into battery charging power.

MPPT charging helps:

• Maximise available solar generation
• Improve charging performance during changing sunlight
• Increase overall solar-system efficiency
• Support larger battery banks
• Reduce dependence on grid charging

🔋 48V Battery System

The inverter operates with a 48V battery bank and can be paired with compatible:

• 🔋 48V / 51.2V LiFePO₄ lithium batteries
• 🔋 Gel batteries
• 🔋 AGM batteries
• 🔋 Deep-cycle lead-acid batteries
• 🔋 Tubular battery banks

For lithium systems, battery charging limits and BMS communication requirements should be confirmed before installation.

✅ Benefits

• Powerful 6kW output
• 48V battery architecture
• High-voltage 500V solar input
• Built-in 100A MPPT charger
• Solar, battery and AC integration
• Wi-Fi monitoring support
• Compact all-in-one design
• Suitable for larger residential solar systems
• Designed for stable and reliable daily operation
