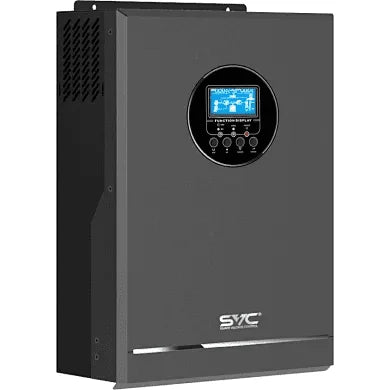

Phoenix SVC 4kW 24V Hybrid Solar Inverter – 4000W, 100A MPPT

★★★★★Available to order

KSh40,000.00

The Phoenix SVC 4kW 24V Hybrid Solar Inverter is a powerful off-grid and backup solution designed for homes, offices, shops, security systems and small commercial installations. It combines a 4000W pure sine wave inverter, 100A MPPT solar charge controller, battery...

✓ Genuine equipmentProduct support and guidance included

🚚 Countrywide deliveryAvailable across Kenya

⚙ Technical helpConfirm sizing and compatibility

🛡 Warranty guidanceWhere applicable by product

Need help choosing the right setup? Our team can help confirm compatibility, sizing, delivery and installation before you place your order.

Product overview

Reliable performance without the guesswork.

Review the product details, specifications and support information below before ordering.

Best for

🏠 Home solar backup systems
🏢 Small offices
🏪 Shops and retail premises
🌍 Off-grid homes
📹 CCTV and security systems
📡 Communication installations
💧 Selected agricultural applications
⚡ Areas with frequent grid outages

Typical use

With 4000W output, the inverter can support a wide range of household and business loads, including:

💡 Lighting
📺 Televisions
📡 Wi-Fi routers
💻 Computers and laptops
🌀 Fans
📹 CCTV systems
🧊 Refrigerators and freezers
🖨️ Office equipment
🧺 Selected washing machines
🏪 Shop equipment
💧 Selected water pumps

Appliances with motors or compressors should be checked for their starting surge before connection.

The Phoenix SVC 4kW 24V Hybrid Solar Inverter is a powerful off-grid and backup solution designed for homes, offices, shops, security systems and small commercial installations.

It combines a 4000W pure sine wave inverter, 100A MPPT solar charge controller, battery charging and grid support in one compact unit. The inverter supports both lithium and lead-acid batteries and includes an intuitive LCD display for easy monitoring and configuration.

⚡ Key Features

⚡ 4000W / 4kW pure sine wave output
🔋 24V DC battery system
☀️ Built-in 100A MPPT solar charge controller
🔆 40–450V DC MPPT solar input range
☀️ Supports up to 5000W PV input
🔋 Compatible with lithium and lead-acid batteries
📟 Intuitive LCD display
📶 Remote Wi-Fi / app monitoring support
🔄 Solar, battery and utility/grid operation
⚙️ Multiple operating and charging priority modes
🛡️ Overload and short-circuit protection
🔄 Automatic restart after power interruption
🏠 Suitable for residential and small-business installations
🌍 Ideal for off-grid and backup-power systems

☀️ High-Voltage MPPT Solar Charging

The built-in 100A MPPT controller helps maximise the amount of energy harvested from the solar panels.

With a stated 40–450V DC solar input range and up to 5000W of PV capacity, the inverter can accommodate larger panel strings than basic low-voltage solar inverters.

This can help provide:

☀️ Efficient solar charging
📉 Lower PV cable current
🔌 Reduced transmission losses
📐 Greater flexibility when configuring solar strings
🔋 Faster charging of suitable battery banks

🔋 24V Battery Compatibility

The inverter operates with a 24V battery bank and supports compatible:

🔋 LiFePO₄ lithium batteries
🔋 Other compatible lithium batteries
🔋 Gel batteries
🔋 AGM batteries
🔋 Deep-cycle lead-acid batteries

Battery charging parameters should always be configured according to the exact battery type being installed.

📟 Intelligent LCD Display

The front LCD panel provides convenient monitoring and configuration of the power system.

Users can monitor information such as:

☀️ Solar input
🔋 Battery status
🔌 Utility input
⚡ Inverter output
🔄 Charging status
⚠️ Fault and protection information

🔄 Flexible Operating Modes

The Phoenix SVC inverter supports multiple priority modes, allowing the user to choose how solar, battery and utility power are used.

Typical options include:

☀️ Solar priority
🔌 Utility priority
🔋 Battery priority
🔄 Hybrid operation

This allows the system to be configured for solar savings, reliable backup or off-grid operation.

✅ Benefits

4kW pure sine wave output
100A MPPT solar charging
High-voltage PV input
Supports up to 5kW of solar panels
Lithium and lead-acid battery compatibility
Solar, battery and grid integration
LCD monitoring
Optional remote Wi-Fi monitoring
Compact wall-mounted design
Suitable for both backup and off-grid applications

Technical details

Specifications

🏷️ Brand: SVC / Phoenix

⚡ Rated Output Power: 4000W / 4kW
🔋 Battery Voltage: 24V DC
🌊 Output Waveform: Pure sine wave
☀️ MPPT Charge Controller: 100A
🔆 MPPT Input Range: 40–450V DC
☀️ Maximum PV Input Power: 5000W
🔋 Battery Compatibility: Lithium and lead-acid
📟 Display: Intelligent LCD monitoring screen
📶 Monitoring: Wi-Fi / app monitoring supported
🔄 Power Sources: Solar, battery and utility/grid
⚙️ Inverter Type: Hybrid / off-grid solar inverter

Questions and answers

Before you order

What is the inverter's rated output?
It provides 4000W / 4kW of pure sine wave output.

What battery voltage does it use?
It operates on a 24V DC battery system.

What size MPPT controller does it have?
It includes a 100A MPPT solar charge controller.

How much solar can be connected?
The published specification lists up to 5000W PV input.

What is the MPPT input range?
The stated range is 40–450V DC.

Can it work with lithium batteries?
Yes. It supports compatible lithium and lead-acid batteries.

Does it support Wi-Fi monitoring?
Yes. Remote Wi-Fi/app monitoring is listed for this model configuration.

Can it run a refrigerator?
Yes, provided the refrigerator's starting surge and the other connected loads remain within the inverter's capabilities.

Can it run a whole house?
It can support many essential household loads, but whole-house suitability depends on total simultaneous consumption, motor starting surges and available battery capacity.
