Product overview
Reliable performance without the guesswork.
Review the product details, specifications and support information below before ordering.
The Felicity Solar IVEM4024 II is suitable for:
- 🏠 Home solar backup systems
- 🏢 Offices
- 🏪 Shops and retail premises
- 🌍 Off-grid homes
- ☀️ Hybrid solar installations
- 📹 CCTV and security systems
- 📡 Communication equipment
- ⚡ Essential-load backup
- 🧊 Refrigeration and selected household appliances
- 🔋 Lithium battery solar systems
With a rated continuous output of 4000W, the inverter can support a considerably larger range of appliances than smaller 1kW or 2kW systems.
Depending on the total combined load, it can support equipment such as:
- 💡 Household lighting
- 📺 Televisions
- 📡 Wi-Fi routers
- 💻 Computers and laptops
- 🌀 Fans
- 🧊 Refrigerators and freezers
- 📹 CCTV and security systems
- 🖨️ Office equipment
- 🔊 Audio systems
- 🍳 Selected kitchen appliances
- 🏪 Shop and business equipment
- ⚙️ Selected pumps and motor-driven loads
Appliances with compressors, pumps or motors should be checked for their starting surge, not only their normal running wattage.

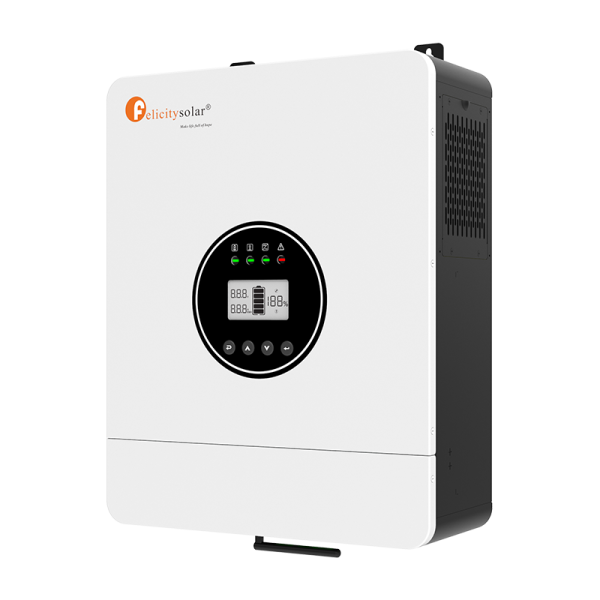

The Felicity Solar IVEM4024 II Hybrid Inverter is a powerful 4kVA / 4000W solar inverter designed for residential solar systems, offices, shops, backup-power installations and off-grid applications.
Operating on a 24V battery system, it combines inverter functionality, solar charging and grid charging in one unit. Its high-voltage solar input capability of up to 500V DC makes it suitable for larger PV strings and more efficient solar-array configurations.
⚡ Key Features
- ⚡ 4kVA / 4000W rated inverter power
- 🔋 24V DC battery system
- ☀️ High-voltage solar PV input
- 🔆 Maximum PV input voltage up to 500V DC
- 🌊 Pure sine wave AC output
- 🔋 Compatible with suitable lithium and deep-cycle batteries
- ☀️ Designed for solar charging and backup power
- 🔌 Supports grid and battery operation
- 📟 Integrated LCD monitoring and control display
- 🛡️ Built-in system protection
- 🏠 Suitable for residential solar installations
- 🏪 Ideal for shops, offices and small businesses
- 🌍 Suitable for hybrid and off-grid applications
☀️ High-Voltage Solar Input
One of the major advantages of the IVEM4024 II is its high-voltage PV input capability.
A maximum solar input voltage of up to 500V DC allows multiple solar panels to be connected in series, which can:
- Reduce PV cable current
- Reduce voltage drop over longer cable runs
- Allow cleaner solar-array wiring
- Improve flexibility when configuring larger solar arrays
- Reduce the number of parallel PV strings required
The final solar-panel configuration must still remain within the inverter's approved MPPT voltage range, maximum PV current and maximum PV power.
🔋 24V Battery System
The inverter operates using a 24V battery bank.
Depending on the inverter charging configuration, it may be paired with compatible:
- 🔋 LiFePO₄ lithium batteries
- 🔋 Gel batteries
- 🔋 AGM batteries
- 🔋 Deep-cycle lead-acid batteries
Typical configurations may include:
- One compatible 24V lithium battery
- Two identical 12V batteries connected in series
- Larger 24V battery banks for increased backup duration
Battery charging parameters should always be matched to the specific battery chemistry.
🌊 Pure Sine Wave Output
The inverter provides pure sine wave power, making it suitable for sensitive electronics and many motor-driven appliances.
Benefits include:
- Stable AC output
- Reduced electrical noise
- Better compatibility with electronics
- Improved operation of motors and compressors
- Safer operation of computers and communication equipment
✅ Benefits
- Powerful 4kW output
- High-voltage PV input
- 24V battery architecture
- Pure sine wave output
- Combines solar, grid and battery operation
- Compact wall-mounted design
- Suitable for larger residential solar arrays
- Supports a broad range of household loads
- Suitable for lithium and conventional battery systems when correctly configured
⚠️ Solar Panel Configuration
Because this inverter accepts PV voltage up to 500V DC, solar-panel string sizing must be done carefully.
Before connecting panels, confirm:
- ☀️ Maximum PV open-circuit voltage
- 🔆 MPPT operating voltage range
- ⚡ Maximum PV input current
- 🔋 Maximum permitted solar-array wattage
- 🌡️ Cold-weather Voc increase of the panels
- 🔌 Correct DC isolator and surge protection requirements
The combined Voc of panels connected in series must never exceed the inverter's maximum PV voltage.
Technical details
Specifications
- 🏷️ Brand: Felicity Solar
- 🔢 Model: IVEM4024 II
- ⚡ Rated Power: 4kVA / 4000W
- 🔋 Battery Voltage: 24V DC
- ☀️ Maximum PV Input Voltage: Up to 500V DC
- 🌊 Output Waveform: Pure sine wave
- 📟 Monitoring: Integrated LCD display
- 🔌 Power Sources: Solar, battery and utility/grid
- 🏠 Application: Residential and light-commercial solar systems
- ⚙️ Installation Type: Wall-mounted hybrid inverter
Questions and answers
Before you order
What is the inverter's output power?
The Felicity IVEM4024 II is rated at 4kVA / 4000W.
What battery voltage does it use?
It operates with a 24V DC battery system.
What is the maximum solar input voltage?
The stated maximum PV input is 500V DC.
Is it a pure sine wave inverter?
Yes. It is designed to provide pure sine wave AC output.
Can it work with lithium batteries?
Yes, provided the lithium battery is compatible with a 24V system and the charging settings are correctly configured.
Can it run a refrigerator or freezer?
Yes, provided the appliance starting surge and the total connected load remain within the inverter's capabilities.
Can it support an entire house?
It can support a substantial range of household loads, but suitability depends on the appliances being used simultaneously and their starting currents.
Can it charge batteries using both solar and grid power?
Yes. As a hybrid inverter, it is designed to integrate solar, battery and utility power.
Why is the 500V solar input useful?
It allows higher-voltage solar-panel strings, which can reduce cable current and make larger solar-array configurations easier.
Is professional installation recommended?
Yes. High-voltage PV systems require correct string calculations, DC protection, earthing, cable sizing and battery configuration.
Not sure this is the right product?
Send us what you need to power, pump or operate and we will help you confirm the best option.
